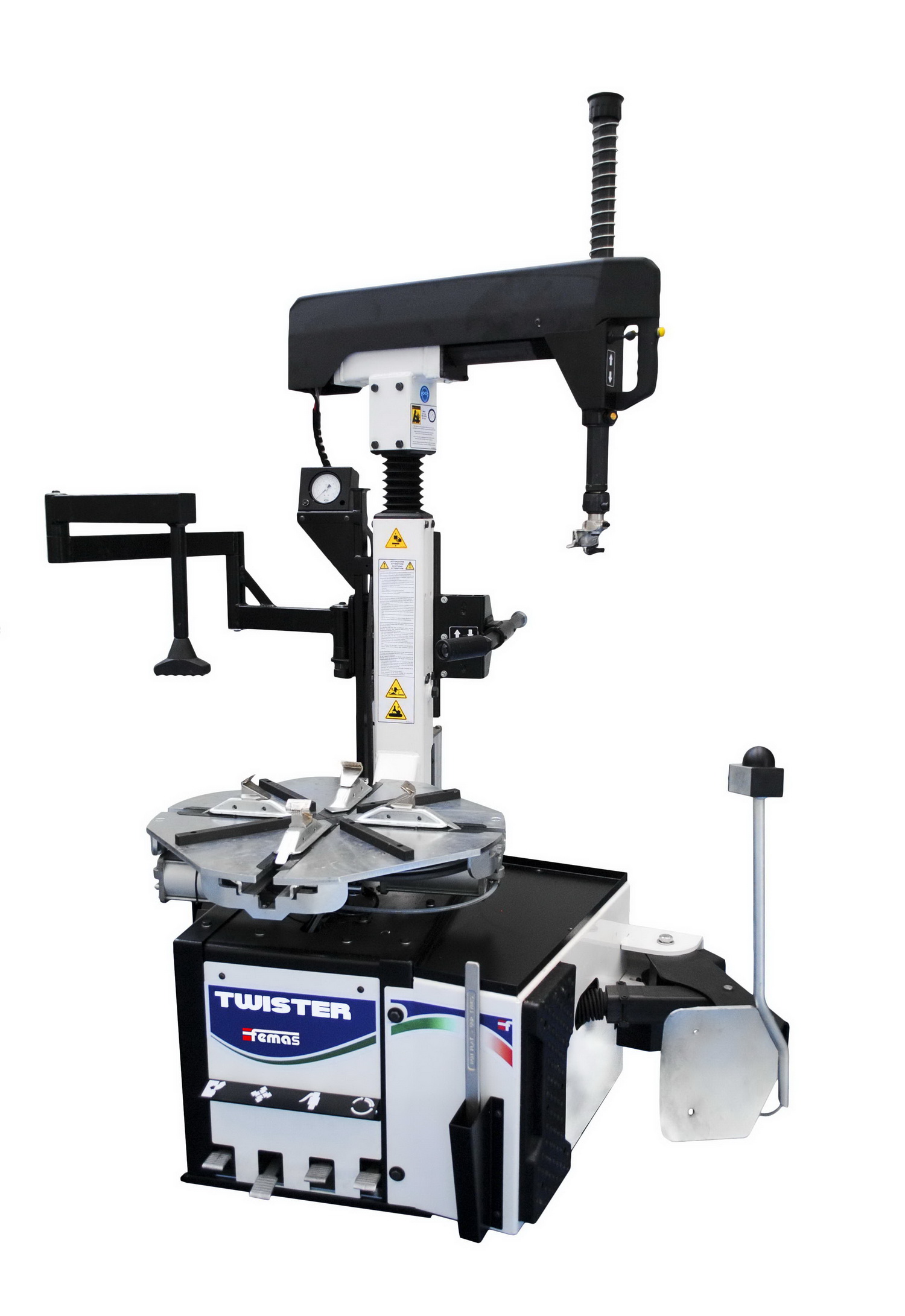

Twister L-L
Patented electrical bead breaker / Pneumatic bead breaker
- Flexibility control system: easy-to-use
- Patented high quality locking system
- Patented Leverless tool: no more lever!
- Automatic locking device of the working arm
- Dual speed self-centring working table 12"-28" inches
The Twister L-L is an automatic tire changer with Leverless tool which allows the user to abandon the bead lever! It is able to work on rims from 12" to 28". Ideal for cars and light commercial vehicles, it can also operate on UHP tires, low profile tire, run-flat and motorcycles wheels (optional adapters). The Twister L-L tire changer is heavyduty engineered in all its aspects: with its ergonomic profile, the helical swinging of the pole and its Press System arms (option), it is a powerful blend of technology, efficiency and easy handling, thanks also to the patented electric bead breaker.
TECHNICAL DATA | TWISTER L-L |
---|---|
Rim clamping (inch) | Int: 12”-26” / Ext: 14" -28" |
Max. tire diameter | 1060 mm (41”) |
Max. rim width | 400 mm (15”) |
Electric power supply | 200-230 V 50-60 Hz 1Ph 0,75 kW |
Operating pressure | 8 - 10 bar |
Self-centring table max speed | 7 rpm (min.) - 14 rpm (max.) |
Pneumatic bead breker (power) | 2.700 kg (26.480 N) |
Electrical bead breaker EBB-1 (power) | 1.600 kg (15.690 N) |
Inflating system | foot controlled |
Max. Inflating pressure | 3,5 bar (50 PSI) |
