Montiermaschinen
Cormach
Cormach neu

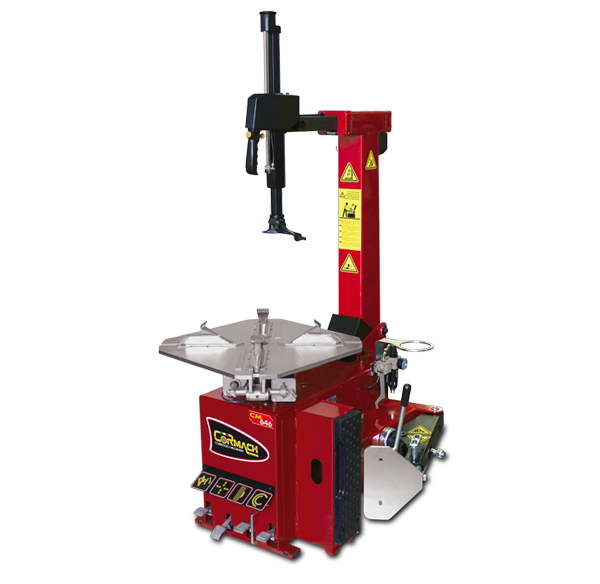

CM-646
- Rim capacity from 10” to 26”
- Manual regulation for wheel clamping locking
- Pneumatic tilting column by pedal control
- Adjustable bead breaker arm
- Variable rotation speed (motoinverter) by pedal control
- GT version equipped with special builtin device for tubeless tyre inflation
(CM 646 GT)
• Max. Radaussen-durchmesser | 1100 (43 ") |
• Max. Reifenbreite | 360 mm (14") |
• AussenseitigeAufspannen | 10"-24" |
• InnerseitigeAufspannen | 13"-26" |
• Betriebsdruck | 8-10 bar |
• Stromversorgung | 230V 50-60 Hz |
• Abdruckerkraft | 2800 Kg |
• Max ÖffnungAbdrücksdiaufel | 380 mm |
• Dreh-Geschwin-digkeit | 8-13 rpm |
• Nettogewicht | 234 Kg (248Kg GT) |
